UCD90124的基本参数
  • 制造厂商:TI
  • 产品类别:电源管理
  • 技术类目:定序器
  • 功能描述:具有风扇控制的 12 导轨序列发生器和系统安全控制器
  • 点击这里打开及下载UCD90124的技术文档资料
  • TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格
快速报价,在行业拥有较高的知名度及影响力
UCD90124的产品详情:

The UCD90124 is a 12-rail PMBus/I2C addressable power-supply sequencer and system-health monitor. The device integrates a 12-bit ADC for monitoring up to 13 power-supply voltage, current, or temperature inputs. Twenty-six GPIO pins can be used for power supply enables, power-on reset signals, external interrupts, cascading, or other system functions. Twelve of these pins offer PWM functionality. Using these pins, the UCD90124 offers support for fan control, margining, and general-purpose PWM functions.

Fan-control signals can be sent using PMBus commands or generated from one of two built-in fan-control algorithms. PWM outputs combined with temperature and fan-speed measurements provide a complete fan-control solution for up to four independent fans.

The TI Fusion Digital Power designer software is provided for device configuration. This PC-based graphical user interface (GUI) offers an intuitive interface for configuring, storing, and monitoring all system operating parameters.

UCD90124的优势和特性:
  • Monitor and Sequence 12 Voltage Rails
    • All Rails Sampled Every 400 μs
    • 12-bit ADC With 2.5-V, 0.5% Internal VREF
    • Sequence Based on Time, Rail and Pin Dependencies
    • Four Programmable Undervoltage and Overvoltage Thresholds per Monitor
  • Fan Control and Monitoring
    • Supports Four Fans With Five User-Defined Speed-vs-Temperature Setpoints
    • Supports Two-, Three-, and Four-Wire Fans
  • Nonvolatile Error and Peak-Value Logging per Monitor (up to 10 Fault Detail Entries)
  • Closed-Loop Margining for 10 Rails
    • Margin Output Adjusts Rail Voltage to Match User-Defined Margin Thresholds
  • Programmable Watchdog Timer and System Reset
  • Flexible Digital I/O Configuration
  • Multiphase PWM Clock Generator
    • Clock Frequencies From 15.259 kHz to 125 MHz
    • Capability to Configure Independent Clock Outputs for Synchronizing Switch-Mode Power Supplies
  • Internal Temperature Sensor
  • JTAG and I2C/SMBus/PMBus? Interfaces
  • APPLICATIONS
    • Industrial / ATE
    • Telecommunications and Networking Equipment
    • Servers and Storage Systems
    • Embedded Computing
    • Any System Requiring Sequencing and Monitoring of Multiple Power Rails

PMBus, Fusion Digital Power are trademarks of Texas Instruments.

UCD90124的参数(英文):
  • Supply voltage (Min) (V)
  • 3
  • Number of supplies monitored
  • 13
  • Supply voltage (Max) (V)
  • 3.6
  • Iq (Typ) (uA)
  • 50000
  • Time delay (ms)
  • Programmable
  • Number of sequenced outputs
  • 12
  • Rating
  • Catalog
UCD90124具体的完整产品型号参数及价格(美元):

UCD90124的完整型号有:UCD90124RGCR、UCD90124RGCT,以下是这些产品的关键参数及官网采购报价:

UCD90124RGCR,工作温度:-40 to 125,封装:VQFN (RGC)-64,包装数量MPQ:2000个,MSL 等级/回流焊峰值温度:Level-3-260C-168 HR,引脚镀层/焊球材料:NIPDAU,TI官网UCD90124RGCR的批量USD价格:7.189(1000+)

UCD90124RGCT,工作温度:-40 to 125,封装:VQFN (RGC)-64,包装数量MPQ:250个,MSL 等级/回流焊峰值温度:Level-3-260C-168 HR,引脚镀层/焊球材料:NIPDAU,TI官网UCD90124RGCT的批量USD价格:8.439(1000+)

轻松满足您的TI芯片采购需求
UCD90124的评估套件:

UCD90SEQ64EVM-650 — 用于 UCD90xxx 64 引脚序列发生器和系统安全监控器的评估模块

UCD90SEQ64EVM-650 是一个完全组装且经过测试的电路,用于评估 64 引脚序列发生器和系统安全控制器,包括 UCD90120、UCD90124、UCD90120A、UCD90124A、UCD90910 和 UCD90160。

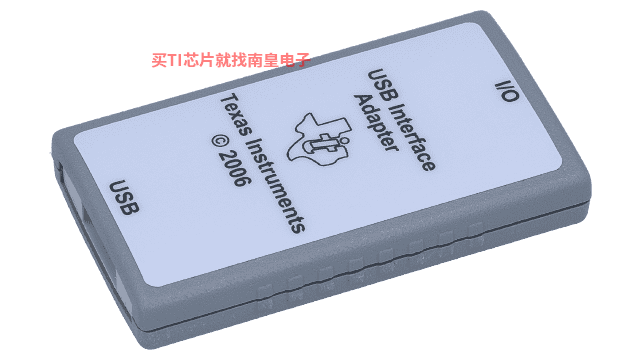

USB-TO-GPIO — USB Interface Adapter EVM

该 EVM 用作主机 PC(兼容 IBM™)与一个或多个从属器件(通过标准 A 型转迷你 B 型 USB 电缆实现)之间的接口适配器或桥接器。USB 接口适配器与主机 PC 之间的通信通过 USB 实现,而 USB 接口适配器与从属器件之间的通信通过内部集成电路 (I²C)、SMBus、PMBus 和/或通用输入/输出 GPIO 实现。桥接器转换 USB 与串行协议之间的通信事务。

FUSION_DIGITAL_POWER_DESIGNER — Digital Power 软件

Fusion Digital Power图形用户界面 (GUI) 软件用于配置和监视精选的德州仪器 (TI) 数字电源控制器以及序列发生器/运行状况监视器。此应用程序使用 PMBus 协议通过 TI USB 适配器经由串行总线与器件进行通信。

FUSION_MFR_GUI — Fusion Digital Power 制造工具

The Fusion Digital Power Manufacturing Tool (aka MFR GUI) is a Graphical User Interface used to download firmware, upgrade firmware, configure, calibrate and test .

The MFR GUI supports the same devices as Fusion Digital Power Designer software. This tool is typically used in manufacturing (...)

UCD90124 BSDL

PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用,包括业内超大的模型库之一,涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。

借助?PSpice for TI 的设计和仿真环境及其内置的模型库,您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案,然后再进行布局和制造,可缩短产品上市时间并降低开发成本。

在?PSpice for TI 设计和仿真工具中,您可以搜索 TI (...)
